Fibaro Systems

Fibaro envisions to give innovative spaces to every life it touches. Fibaro features wireless, modular, designer and ecosystem centred products to make day-to-day life easier and safer. FIBARO smart home devices render a perfect environment that adapts to the demands of a whole family.FIBARO is a wireless smart home automation system, based on the Z-Wave protocol. All of available devices can be controlled through a computer (PC or Mac), smartphone or tablet. Devices are not only receivers, but can also repeat the signal, increasing the Z-Wave network’s range. It gives advantage over traditional wireless systems that require direct link between transmitter and receiver, as a result the construction of the building could affect network’s range negatively

Why Fibaro?

  • An uptime 24/7 technical support from all over India
  • European quality with unmatched reliability
  • Remote access of your home from anywhere in the world
  • Utilizing the most reliable Home Automation communication protocol Z-Wave
  • Holding major market share in retrofit smart home solution market
  • No additional wiring or hacking is required to transform your home to a SMART home.

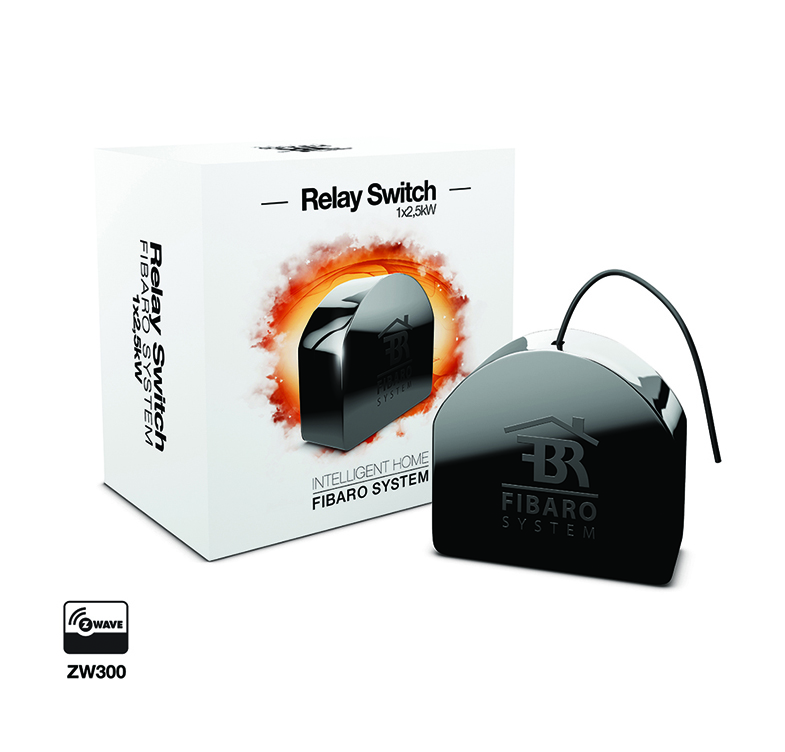

    • FIBARO Single Relay Switch2 -1x2.5KW

    FIBARO Single Relay Switch2 -1x2.5KW

    The remotely operated FIBARO Single Switch 2 is designed to turn electrical devices...

    More Details
    FIBARO Double Relay Switch2- 2x1.5KW

    FIBARO Double Relay Switch2- 2x1.5KW

    The remotely operated FIBARO Double Switch 2 is designed to turn two electrical devices...

    More Details
    FIBARO Dimmer2

    FIBARO Dimmer2

    FIBARO Dimmer is a radio controlled light dimming module, designed to work with various...

    More Details
    FIBARO Roller Shutter 2

    FIBARO Roller Shutter 2

    The radio-controlled Roller Shutter 2 works with motorized roller blinds, venetian blinds...

    More Details
    FIBARO RGBW Controller

    FIBARO RGBW Controller

    Universal, Z-Wave compatible RGB / RGBW controller. FIBARO RGBW Controller may control...

    More Details
    FIBARO Motion Sensor

    FIBARO Motion Sensor

    The FIBARO Motion Sensor is a universal Z-Wave multi-sensor. Along with detecting motion the...

    More Details
    FIBARO Smoke Sensor

    FIBARO Smoke Sensor

    The FIBARO Smoke Sensor is a universal, optical Z-Wave smoke detector. Fire alarm is signalled...

    More Details
    FIBARO Door/Window Sensor

    FIBARO Door/Window Sensor

    FIBARO Door/Window Sensor 2 is a wireless, battery powered, Z-Wave Plus compatible...

    More Details

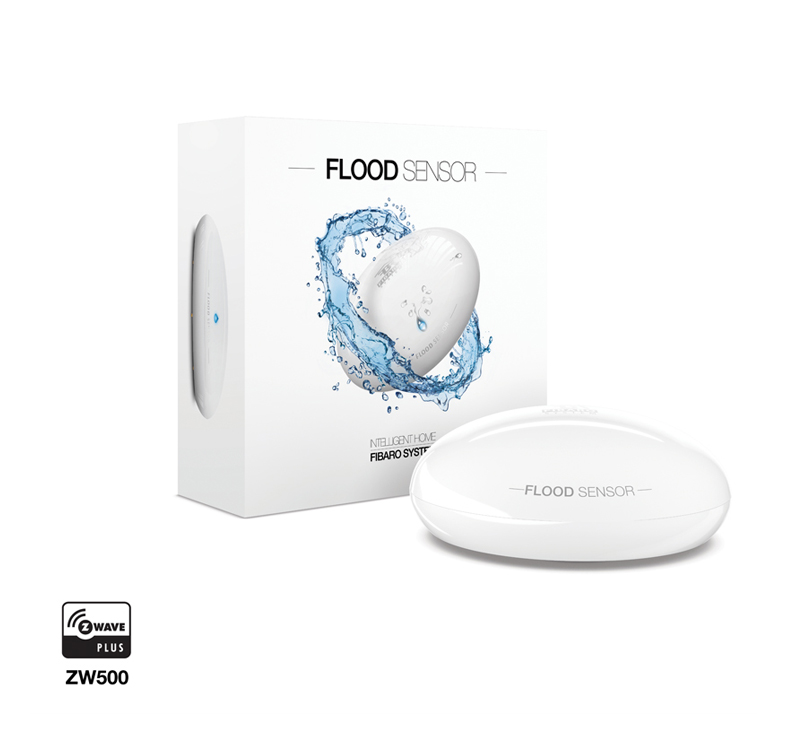

    FIBARO Flood Sensor

    FIBARO Flood Sensor

    FIBARO Flood Sensor is a universal, Z-Wave Plus compatible, flood and temperature sensor...

    More Details

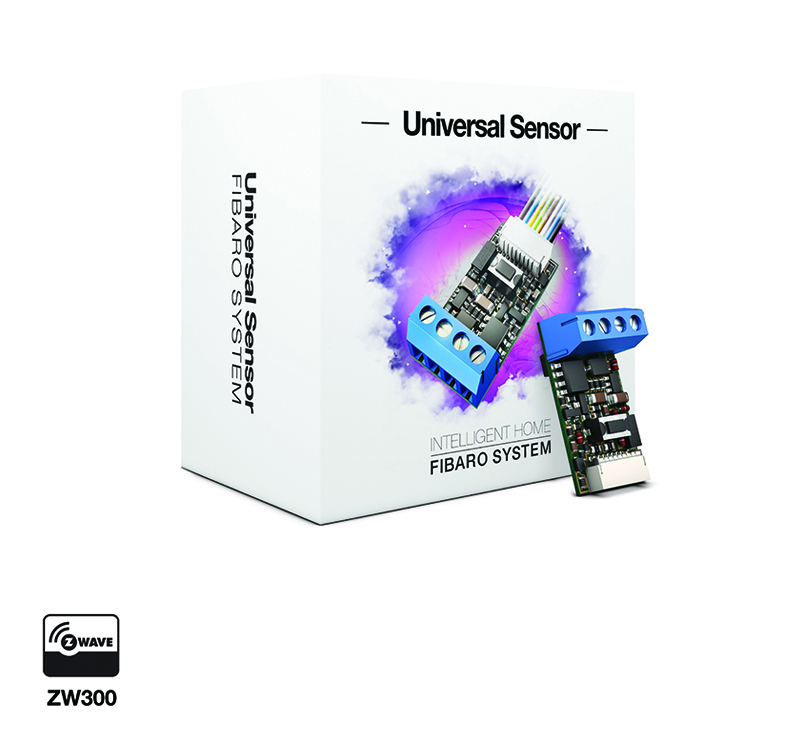

    FIBARO Universal Binary Sensor

    FIBARO Universal Binary Sensor

    The Universal Binary Sensor is a wireless module that makes it possible to improve the...

    More Details

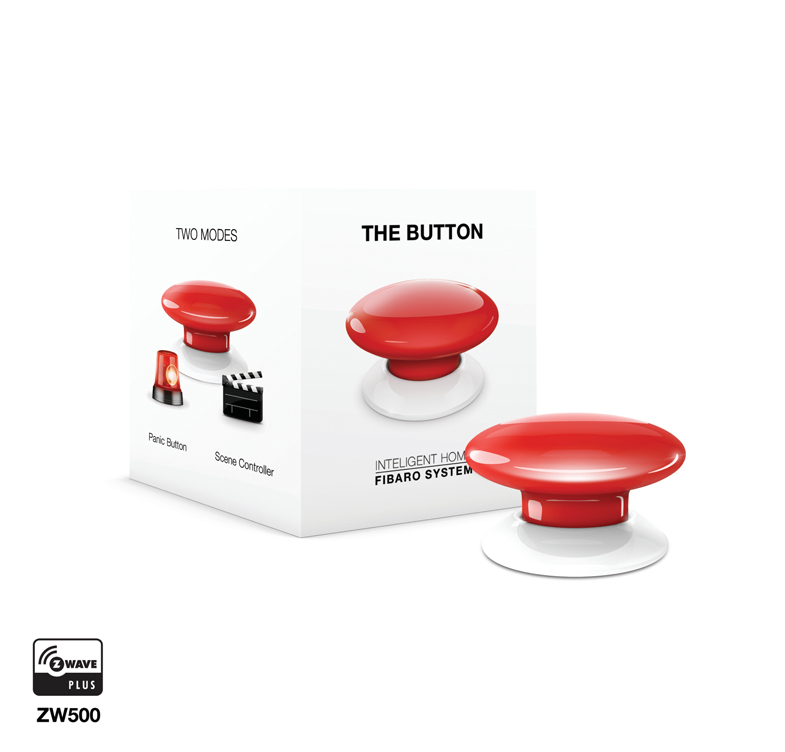

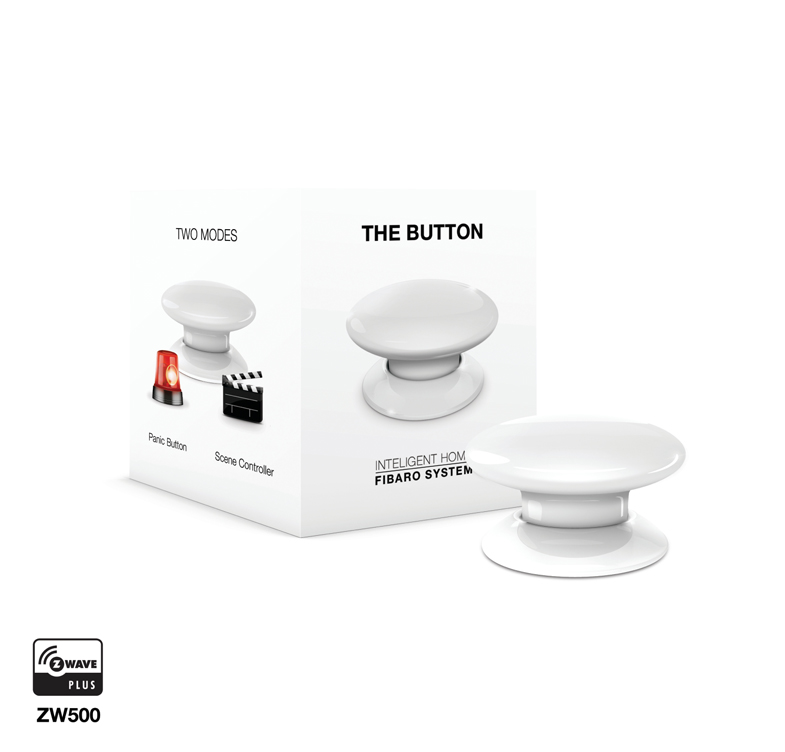

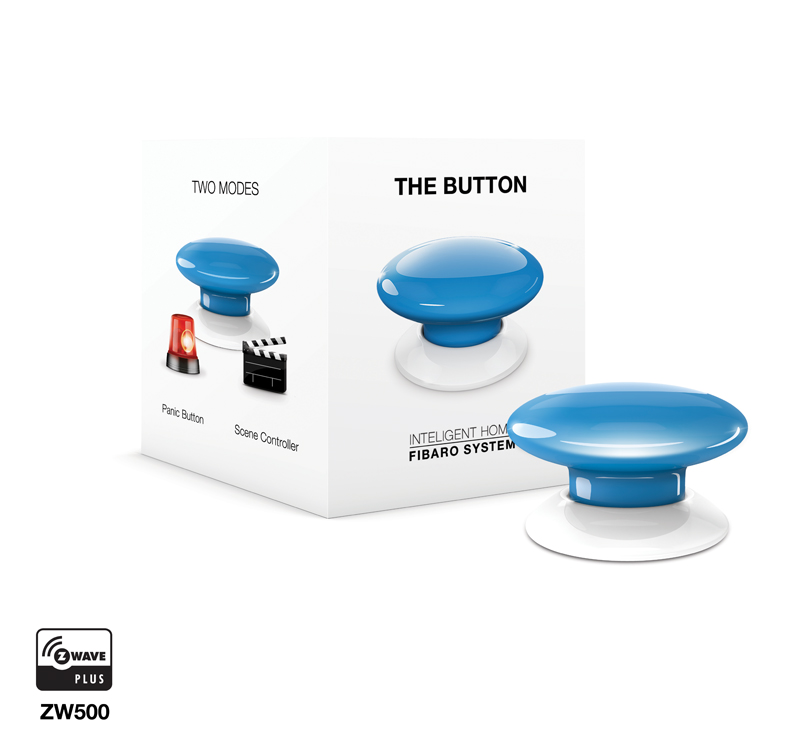

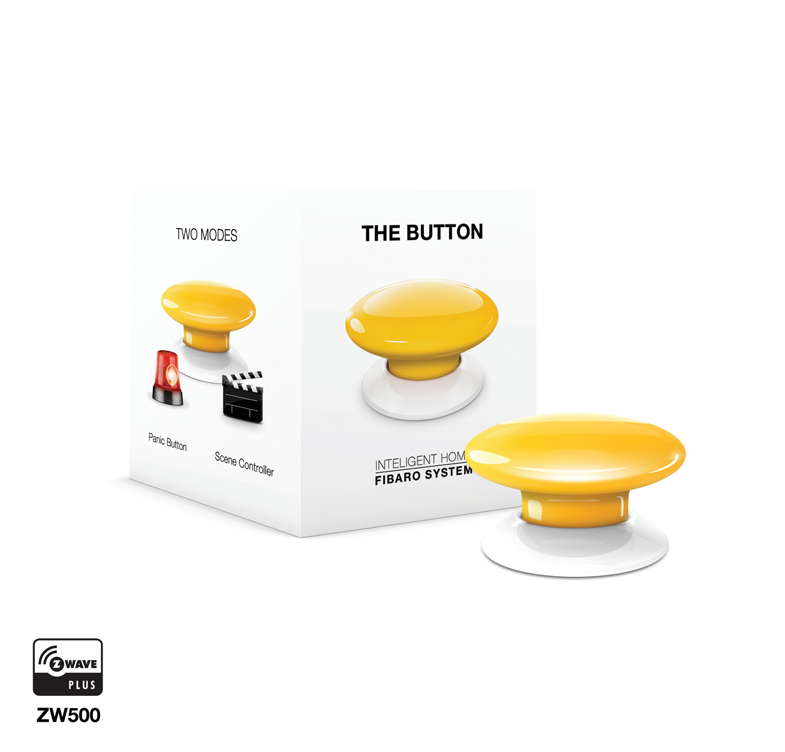

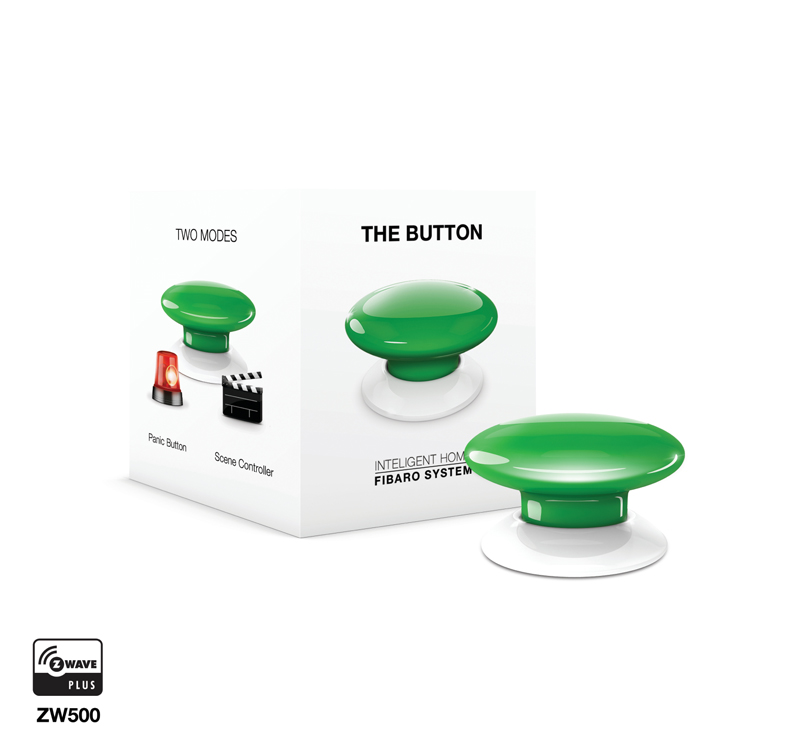

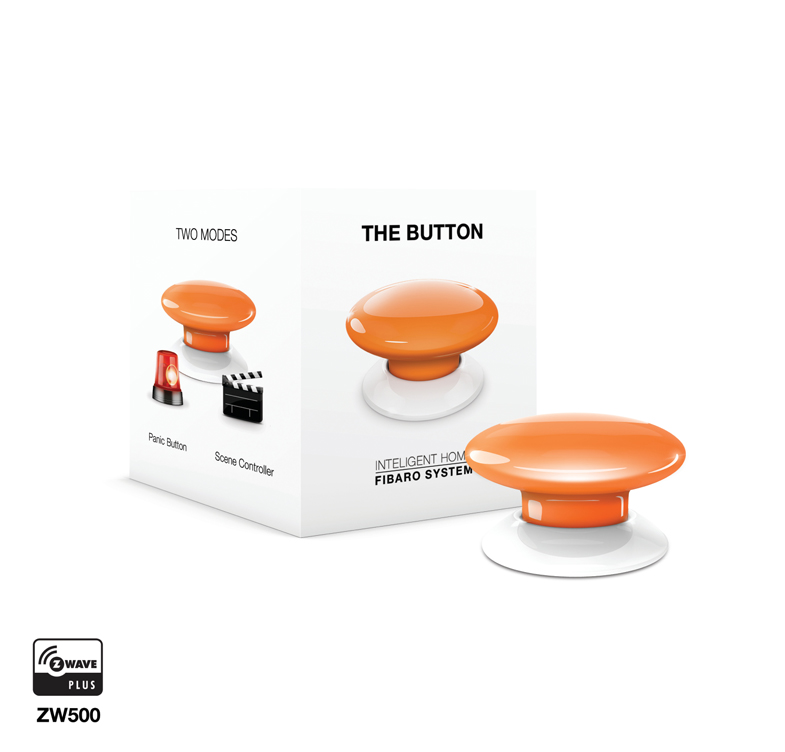

    FIBARO Button

    FIBARO Button

    FIBARO Button is a compact, battery-powered, Z-Wave Plus compatible device. It allows you...

    More Details

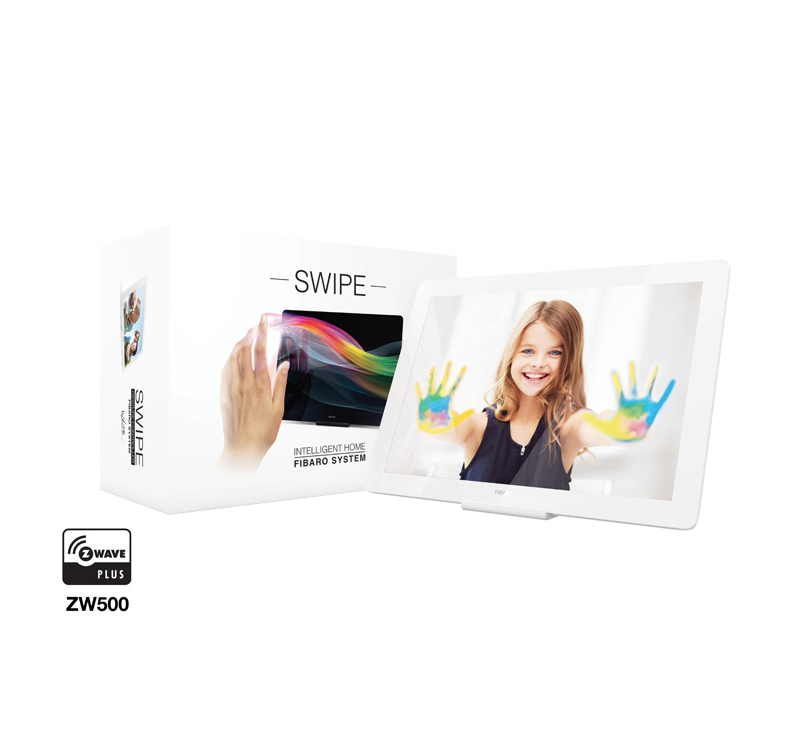

    FIBARO Swipe

    FIBARO Swipe

    FIBARO Swipe is a revolutionary, battery-powered gesture control pad that allows you to...

    More Details

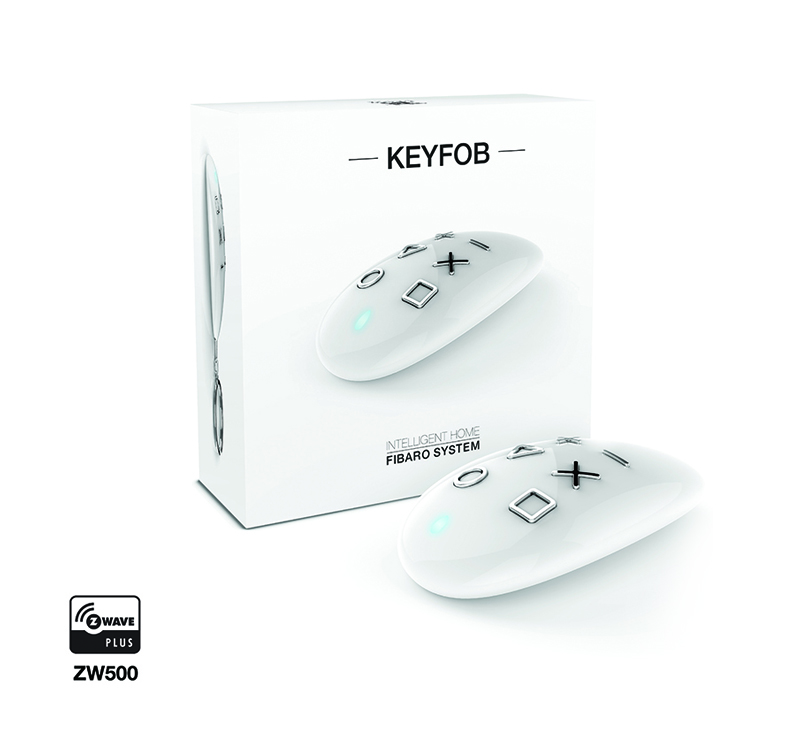

    FIBARO Key Fob

    FIBARO Key Fob

    FIBARO KeyFob is a Z-Wave Plus compatible, battery-powered, compact remote control...

    More Details

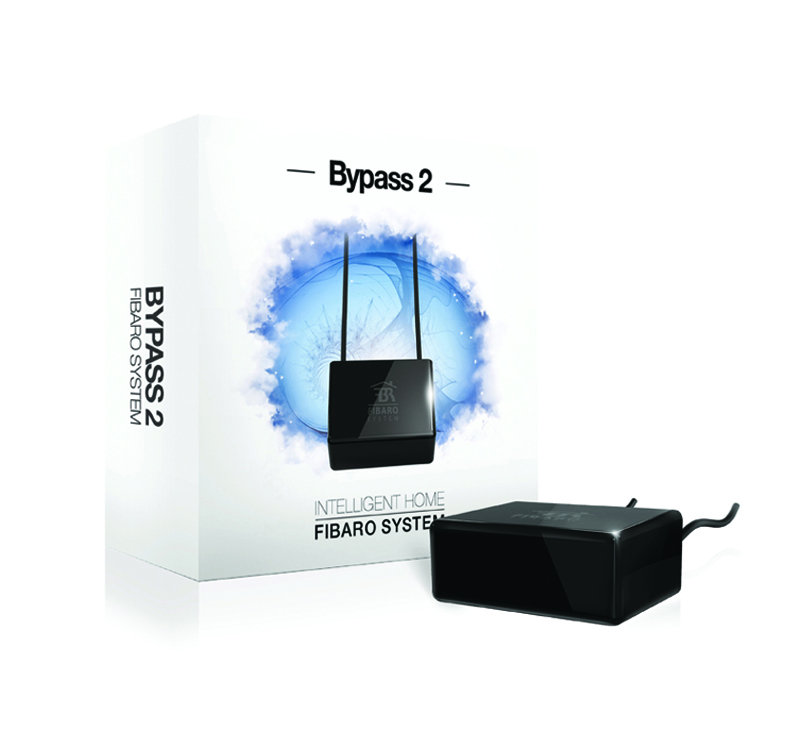

    FIBARO Bypass

    FIBARO Bypass

    Bypass 2 FIBARO is a device complementary to FIBARO Dimmer FGD212. Its installation...

    More Details

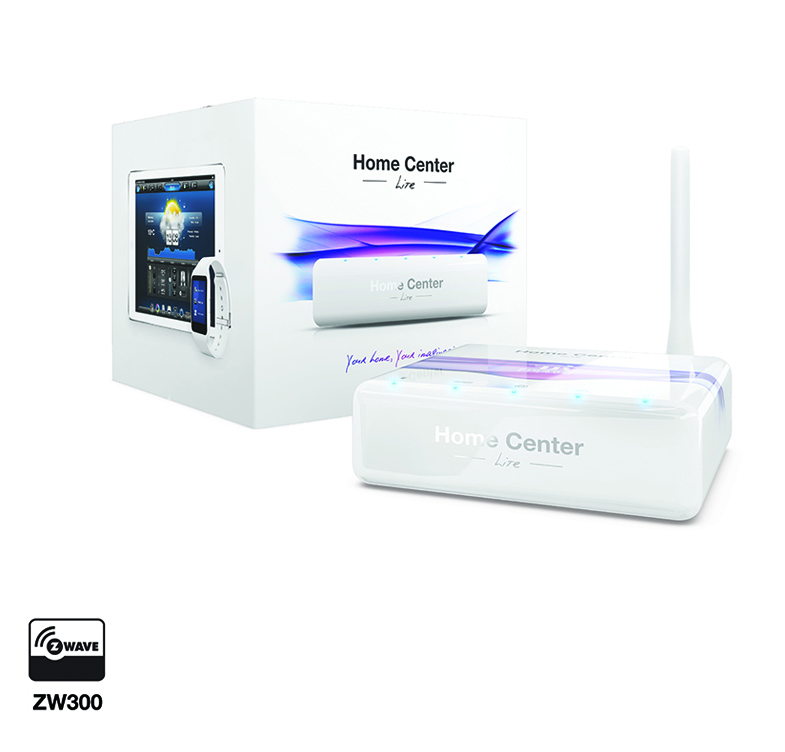

    FIBARO Home Centre Lite

    FIBARO Home Centre Lite

    FIBARO Home Center Lite (HCL) is a new, sleek and smaller version of the FIBARO controller...

    More Details

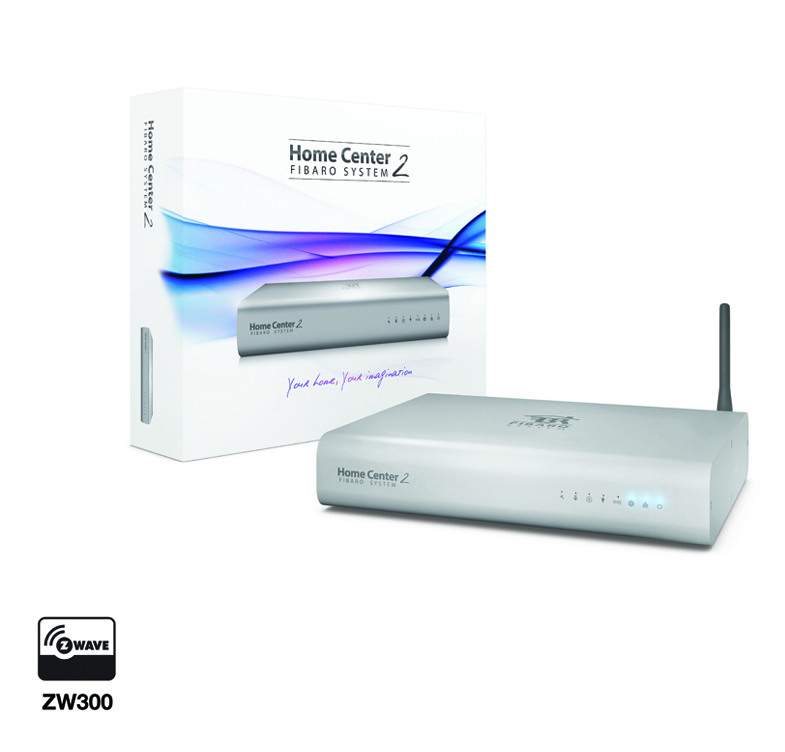

    FIBARO Home Centre 2

    FIBARO Home Centre 2

    Home Center 2 is the fast, efficient and high power hub, that is used to control the FIBARO...

    More Details
    FIBARO Single Relay Switch2 -1x2.5KW

    MODEL: FGS-213 IN ZW5

    The remotely operated FIBARO Single Switch 2 is designed to turn electrical devices on and off and to measure their power and energy consumption. The compact size of the device makes it the world's smallest of its type and allows for the product to be installed in wall switch boxes or housings. FIBARO Single Switch 2 can be controlled either via Z-Wave network or with a wall switch through a direct connection.

    FIBARO Single Relay Switch2 -1x2.5KW
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Built-in scene activation mechanism
    • Security and notification communication classes
    • Configuration menu with a diode
    • Latest generation Z-Wave 500 series chip
    • Z-Wave Plus protocol
    • Energy and power measurement of connected devices
    • Supports secure mode (Z-Wave Network Security) encrypted with AES-128


    • Power Source : 110V – 230V +/-10% 50/60Hz
    • Power Source : 24 – 60V DC ±10%
    • Max. AC output : 16A / 230V 50/60Hz
    • Max. DC output : 16A / 30V
    • Max. power output (resistive loads only) 3 kW (in case of loads other than resistive it may be necessary to connect lower output in order to protect the Switch from damage)
    • Conforms to UE regulations : EN55022 (radio wave interference), EN61000-6 (safety of use)
    • Overheating protection : safety off at 105°C
    • Ambient temperature : 10°C – 40°C
    • To be mounted in standard wall switch boxes Ø ≥50mm
    • Radio protocol : Z-Wave
    • Antenna range : up to ca. 50 meters outdoor, or up to 30 meters inside (depends on building structure)
    • Outside dimension (L x W x H) 42mm x 36mm x 15mm
    • You can now stay away from worrying about the status of your lights and heater while you are away. By using FIBARO Single relay switch you can have the controls of lights and appliances in your home network. You may check the status of it and control while on travel or in the office.
    • FIBARO relay switch helps you to monitor the energy consumption of a particular light or appliance. There by you can manage the energy consumption and save the valuable energy.
    FIBARO Double Relay Switch2- 2x1.5KW

    MODEL: FGS-223 IN ZW5

    The remotely operated FIBARO Double Switch 2 is designed to turn two electrical devices on and off and to measure their power and energy consumption. The compact size of the device makes it the world's smallest of its type and allows for the product to be installed in wall switch boxes or housings. FIBARO Double Switch 2 can be controlled either via Z-Wave network or with a wall switch through a direct connection.

    FIBARO Double Relay Switch2- 2x1.5KW
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Built-in scene activation mechanism
    • Security and notification communication classes
    • Configuration menu with a diode
    • Latest generation Z-Wave 500 series chip
    • Z-Wave Plus protocol
    • Energy and power measurement of connected devices
    • Supports secure mode (Z-Wave Network Security) encrypted with AES-128


    • Power Source: 110V – 230V +/-10% 50/60Hz
    • Power Source: 24-60V DC ±10%
    • Max. single AC output: 8A / 230V 50/60Hz
    • Max. single DC output: 8A / 30V
    • Max. combined power output (resistive loads only) – 2 x 1,5 kW (in case of loads other than resistive it may be necessary to connect lower output in order to protect the Switch from damage)
    • Conforms to UE regulations : EN55022 (radio wave interference), EN61000-6 (safety of use)
    • Overheating protection: safety off at 105°C
    • Ambient temperature: 10°C – 40°C
    • To be mounted in standard wall switch boxes Ø ≥50mm
    • Radio protocol: Z-Wave
    • Radio Frequency 868.4 MHz E
    • Antenna range: up to ca. 50 meters outdoor, or up to 30 meters inside (depends on building structure)
    • Outside dimension (L x W x H) 42mm x 36mm x 15mm
    • You can now stay away from worrying about the status of your lights and heater while you are away. By using FIBARO Double relay switch you can have the controls of lights and appliances in your home network. You may check the status of it and control while on travel or in the office.
    • FIBARO relay switch helps you to monitor the energy consumption of a particular light or appliance. There by you can manage the energy consumption and save the valuable energy.

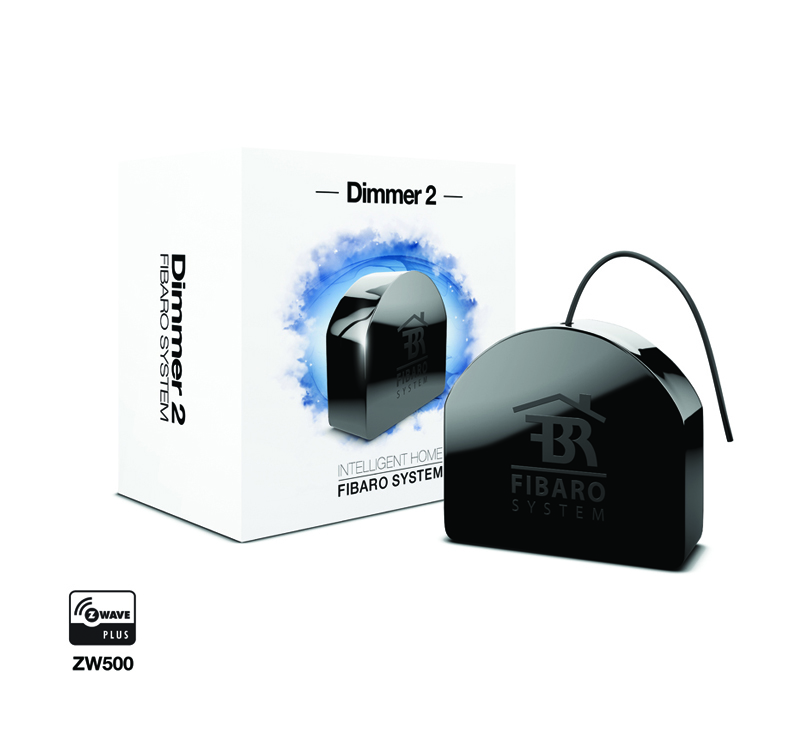

    FIBARO Dimmer2

    MODEL: FGD-212 IN ZW5

    FIBARO Dimmer is a radio controlled light dimming module, designed to work with various types of light sources. It can be connected to two-wire or three-wire configuration. FIBARO Dimmer 2 can switch or dim connected light source either through Z-Wave or through the wall switch connected directly to it. New FIBARO Dimmer 2 is equipped with an algorithm of smart light source detection which makes configuration easier and ensures high compatibility of the device. It features automatic overload protection switch-off and soft start function. In case of non-dimmable light sources only on/off function may be possible (in 3-wire connection).

    FIBARO Dimmer2
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Automatic Detection of a light source
    • Through advanced internal calibration
    • Power Metering
    • Compatible with 2 and 3 wire electrical systems
    • Supports both leading and trailing edge
    • Newest generation, powerful 500 Z-Wave Chip
    • Z-Wave Plus protocol
    • Built-in scene activation
    • Security and Notification class
    • Configuration menu with LED
    • Complete DEKRA and Z-Wave Certification
    • Maximum output of 250W
    • New Intelligent Bypass 2


    • TECHNICAL DATA
    • Power source 230V +/-10%, 50Hz
    • Output power 25-250W (resistive loads only)
    • Conforms to UE regulations : EN55022 (radio wave interference), EN61000-6 (safety of use)
    • Surge protection : 2.5A
    • Overheating protection : safety off at 105°C
    • Ambient temperature: 10°C – 40°C
    • To be mounted in standard wall switch boxes 0 ≥ 50mm
    • Radio protocol: Z-Wave
    • Radio Frequency 865.2 MHz IN
    • Antenna range: up to ca. 50 meters outdoor, or up to 30 meters inside (depends on building structure)
    • Outside dimension (L x W x H) 42mm x 36mm x 15mm
    • In case of loads other than resistive, current intensity may not exceed 1.8A
    • Imagine that in the middle of the night you need to go to the kitchen. You turn the lights on and you’re blinded. Sounds familiar? With Dimmer 2 the lights will turn on slightly dimmed, gently illuminating your way.
    FIBARO Roller Shutter 2

    MODEL: FGR-222 IN

    The radio-controlled Roller Shutter 2 works with motorized roller blinds, venetian blinds, awnings and gates. The Roller Shutter 2 is powered by a single-phase AC and provides precise positioning of blinds, awnings or gates so they can be set to the position you choose. The module is also equipped with a power metering feature when used with a FIBARO Home Center.

    FIBARO Roller Shutter 2
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Power metering function
    • Built-in Z-Wave network range tester
    • Unique, garage gate controller mode
    • Ultra precise roller blind and venetian blind positioning, Remote software update


    • Power Source 110V – 230V +/-10% 50/60Hz
    • Output power up to 1kW
    • Conforms to UE regulations :EN55022 (radio wave interference), EN61000-6 (safety of use)
    • Overheating protection : safety off at 105°C
    • Ambient temperature: 10°C – 40°C
    • To be mounted in standard wall switch boxes Ø ≥50mm
    • Radio protocol: Z-Wave
    • Antenna range: up to ca. 50 meters outdoor, or up to 30 meters inside (depends on building structure)
    • Outside dimensions (L x W x H) 42mm x 37mm x 17mm
    • Advanced association functionality allows for creating groups consisting of other FIBARO Roller Shutters or any other FIBARO devices, e.g. Dimmers, Relay Switches, RGBW Controllers. With just a few clicks, closing one awning will result in all other being closed at the same time. Closing all roller blinds may result in turning on the RGB lights or a group of devices.

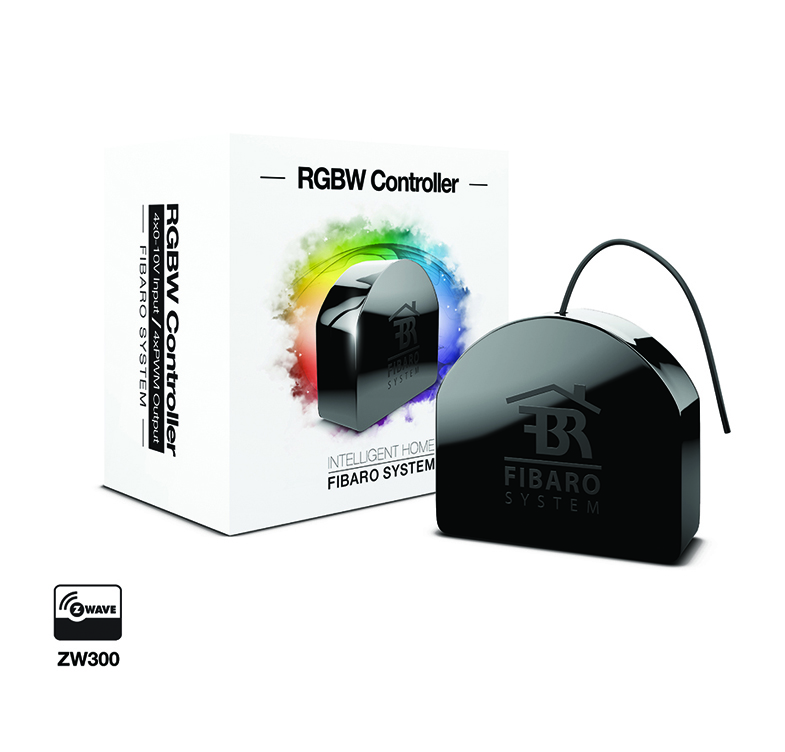

    FIBARO RGBW Controller

    MODEL: FGRGBWM-441 IN

    Universal, Z-Wave compatible RGB / RGBW controller. FIBARO RGBW Controller may control LED strips, RGB / RGBW LEDs and 12V - 24V powered light sources. In addition the device supports up to four, 0V - 10V analogue sensors, such as temperature sensors, humidity sensors, wind sensors, air quality sensors, light sensors etc. All IN and OUT terminals may be user configured for LED control or 0V-10V signal readouts. May be used as a dimmer with Halogen lamps.

    FIBARO RGBW Controller
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Live and historical power consumption measuring
    • Capable of being controlled and synchronised with FIBARO devices and other Z-Wave controllers
    • Most advanced device of its type in the world


    • Power source: 12V DC / 24V DC
    • Rated output power: combined 12A (sum of all connected outputs)
    • Max load (e.g. Halogen lamps) at 12V – 144W combined and 24V – 288W combined
    • Power consumption: < 0.3W
    • Antenna range: up to ca. 50 meters outdoor, or up to 30 meters inside (depends on building structure)
    • Outside dimension (L x W x H) 42mm x 36mm x 15mm.

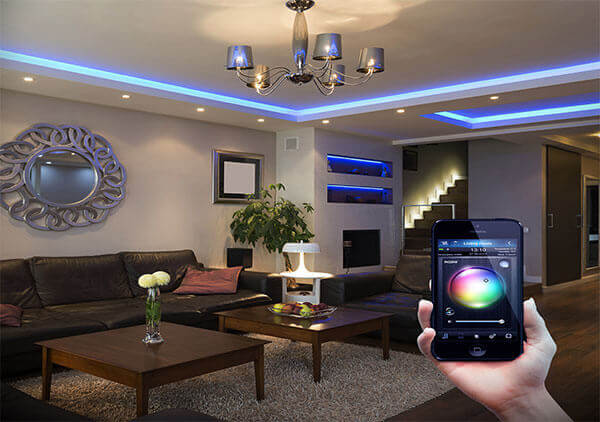

    • Highlight your bathtub depending on the water temperature, which will give your bathroom interior an extraordinary glow.
    • Flashing RGB rays in the garden will notify your neighbours and emergency services on the presence of an intruder. Feel the comfort of safety.
    • Connecting a temperature sensor and soil moisture sensor to a FIBARO RGBW Controller will ensure your lawn is watered when necessary. Using information from those sensors Home center 2 will not waste any water on wet grass after a rain.
    • Garden lighting not only looks good after dark but it also increases you and your family’s safety. Garden lights intensity may be adjusted to match ambient lighting intensity with a light sensor connected to a FIBARO RGBW Controller.
    • Use FIBARO RGBW Controller to continuously monitor conditions in your child's room. Connect four analogue sensors and monitor air quality, humidity, pressure and temperature.
    • Garage Parking master: You can create lighted parking guidance in your garage using colour LED strips and analogue proximity sensors. Illuminated colour will change depending on distance to the walls.


    liverton
    liverton

    Home... just how you like it

    Choose the favourite colour...
    An intuitive interface for your smartphone or tablet, making choosing your favourite colour for each lighting zone child's play.

    House alerts with colours

    Your intelligent house reacts to anything happening around and informs you about it with colours of light. Use FIBARO RGBW Controller not only to arrange interior lighting schemes but also to inform you about any event you can imagine. Thanks to four analogue inputs, FIBARO RGBW Controller may be connected to four independent analogue sensors operating in 0-10V range.

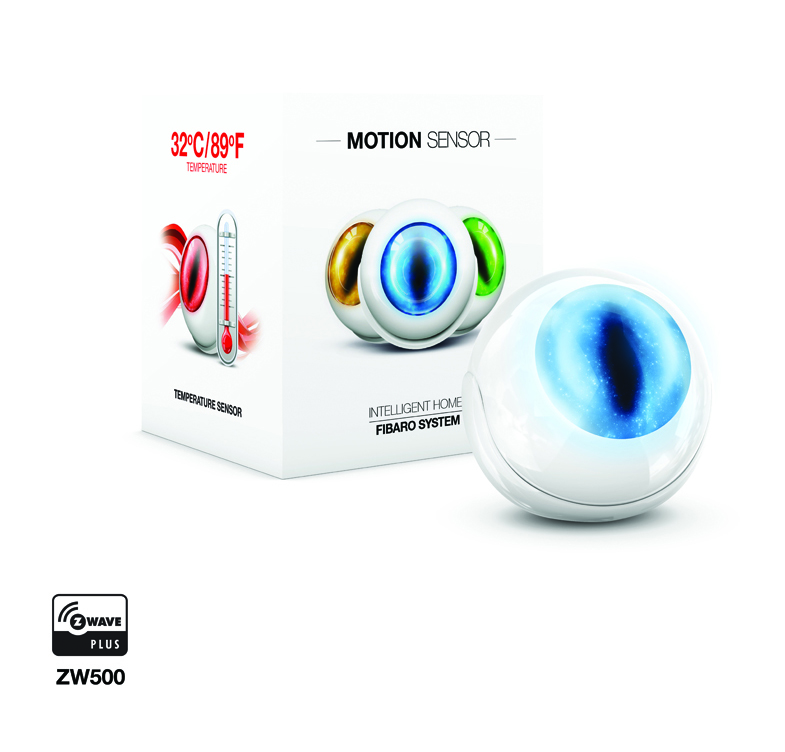

    FIBARO Motion Sensor

    MODEL: FGMS-001 IN ZW5

    The FIBARO Motion Sensor is a universal Z-Wave multi-sensor. Along with detecting motion the device measures the temperature and light intensity. The sensor has a built-in accelerometer to detect any tampering of the device. The FIBARO Motion Sensor is battery powered device and designed to be installed quickly and easily on any surface. The LED indicator signals motion, temperature level, operating mode and can be used to see if device is within the Z-Wave network. The Motion Sensor can be used for lighting scenes and security monitoring systems.

    FIBARO Motion Sensor
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Wireless communication via Z-Wave protocol
    • 2 years of battery life
    • Activating complex scenes
    • Smart notifications
    • Compatible with Android and iOS devices
    • A wide range of operation


    • Power Supply: CR123A battery, 3.6 VDC
    • EU directive compliance: LVD 2006/95/WE; EMC 2004/108/WE; R&TTE 1999/5/WE; RoHS II
    • Recommended installation height: 2.4m
    • Operational Temperature: 0 – 40°C
    • Measured Temperature Range: -20 to 100°C
    • Temperature Measuring Accuracy: 0.5°C (within 0°C-40°C range)
    • Light Intensity Measuring Range: 0 – 32000 LUX
    • Radio Protocol: Z-Wave
    • Range: up to 50m outdoors; up to 30m indoors (depending building structure
    • The house wakes up with you: The FIBARO Motion Sensor makes every morning wonderful. When you wake up, the sensor will start a pre-programmed wake-up scenario. The temperature will be set how you like it, windows will open to give you a breath of fresh air and blinds will open to let the sunshine in. Meanwhile, the smell of fresh ground coffee will waft from your kitchen.
    • Colour announces motion and temperature: The multicolour LED pupil of the FIBARO Motion Sensor informs family members if it has detected any motion or the current temperature of a room. Set the colour and its intensity to your liking and, as soon as you enter a room, you will know what the temperature is there.
    • Watch your home and your loved ones: Wondering what's going on at home when you are away? While you are at the office, or on a business trip, the FIBARO Motion Sensor will watch your home and protect your loved ones. In addition, the FIBARO Motion Sensor monitors how much time someone spends in a room. So you will be informed when your kids spend most of their time watching TV in the living-room instead of doing their homework in their rooms, and then you will be able to turn the TV off remotely.
    • Count the guests: After installing FIBARO Motion Sensors on both sides of the entrance to your home, you will always know how many people entered or left your house, or a given room. No need to worry about a teenager being home alone. The FIBARO Motion Sensor will tell you what time he or she went out, came back home, or how many visitors he or she had.
    • Guests arrived? The system will look after them. Family meeting, dinner with friends, or a party – the FIBARO Motion Sensor will make sure your guests feel comfortable. Once the system knows there are more people in the house, it will turn the ventilation on, so there's enough fresh air.
    • It reminds you to arm the alarm: Did you leave the iron or lights on when leaving in a hurry? Forgot to arm the alarm? No worries! The FIBARO Motion Sensor will detect the lack of motion in the house and inform the Home Center about it. Then the pre-programmed scenario will notify you, or automatically arm the alarm, close the windows, turn off the lights and all unnecessary devices, and lower the heating temperature.

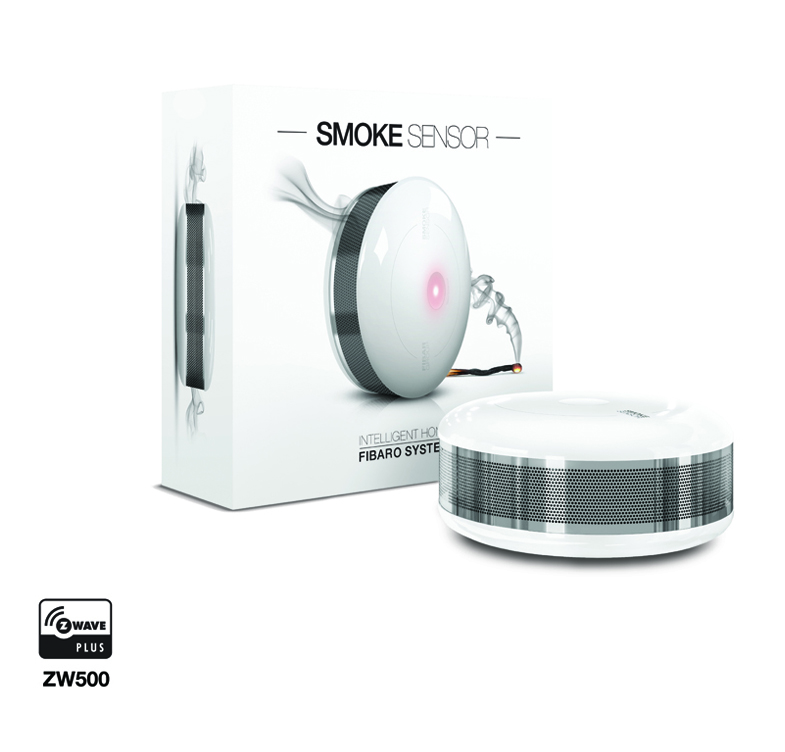

    FIBARO Smoke Sensor

    MODEL: FGSD-002 IN ZW5

    The FIBARO Smoke Sensor is a universal, optical Z-Wave smoke detector. Fire alarm is signalled by sound, visual indicator blinking and by sending Z-Wave control commands. The optical sensor detects smoke at an early stage of fire, often before flames appear and temperature starts to rise significantly. Moreover the device has a built-in temperature sensor, which is programmable indicator of exceeding set temperature level. The FIBARO Smoke Sensor is designed to be placed on a wall or ceiling. Visual indicator signals fire, operating mode and is used to see if device is within the Z-Wave network. The smoke sensor is designed to operate in confined spaces, under normal conditions (lacking smoke, dust, condensed water vapour).

    FIBARO Smoke Sensor
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Inbuilt temperature sensor
    • LED Light indicator
    • Acoustic alarms
    • Mobile notifications
    • 2 years battery life


    • Battery Type: CR123A
    • Power Consumption : 0.4W
    • Output terminals maximum current carrying capacity (ALARM NC, TAMP NC): 25mA
    • Maximum voltage at output terminals: 24v (AC or DC)
    • EU standards compliance: EMC 2004/108/EC, R&TTE 199/5/WE
    • Radio protocol : Z-Wave
    • Range: up to 50m outdoors up to 30m indoors (depending on terrain and building structure)
    • Operational Temperature: 0°C – 40°C
    • Measured temperature range: -20°C – 100°C
    • Temperature measuring accuracy: 0.5°C (within 0°C- 40°C range)
    • Dimensions (Diameter x Height): 65 mm x 28 mm
    • Your intelligent home will help you protect your family from fire and other threats. You decide what action Home Center is to take in case of fire, flood or break-in. With the Smoke Sensor, discovering threats can result in opening roller blinds, a garage gate, windows, and illuminating the safe escape route. You can also manually run a safety scene, performing all lifesaving actions at a touch of a button on your mobile phone or tablet.
    • You cook, I ensure safety: FIBARO Smoke Sensor is the mandatory guest in your kitchen. Each time you prepare the favourite meal for your family, it makes sure you don't forget to turn off the gas or take a roast out of the oven. Incoming threat of fire or... burned meat will be quickly discovered and reported for your convenience, safety, and enjoyable Sunday lunch.

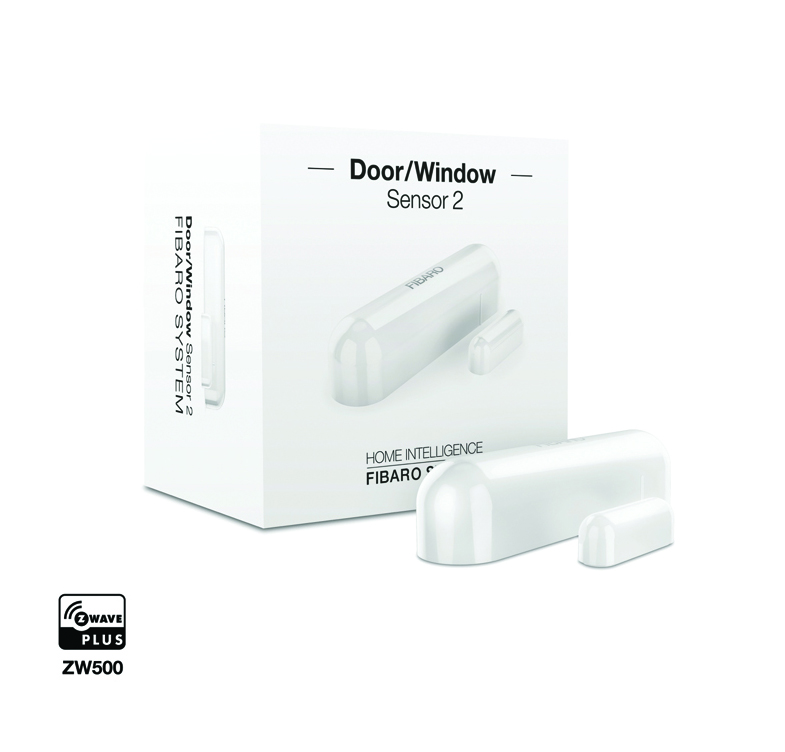

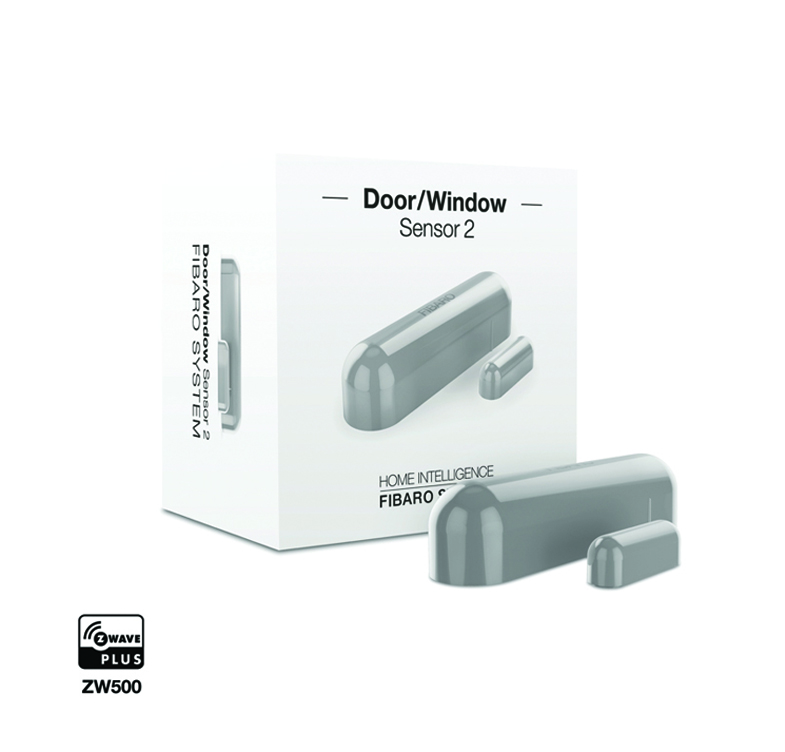

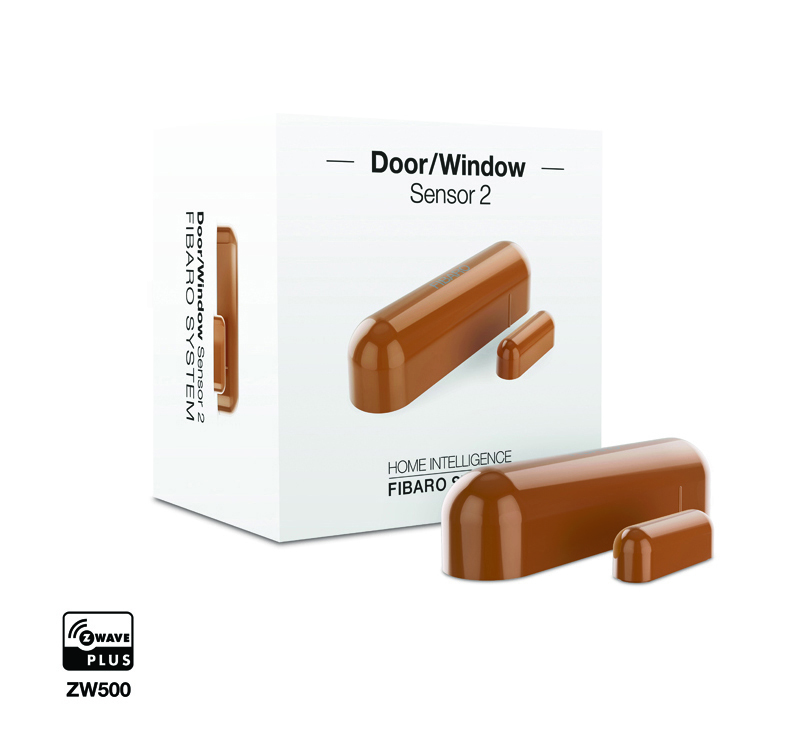

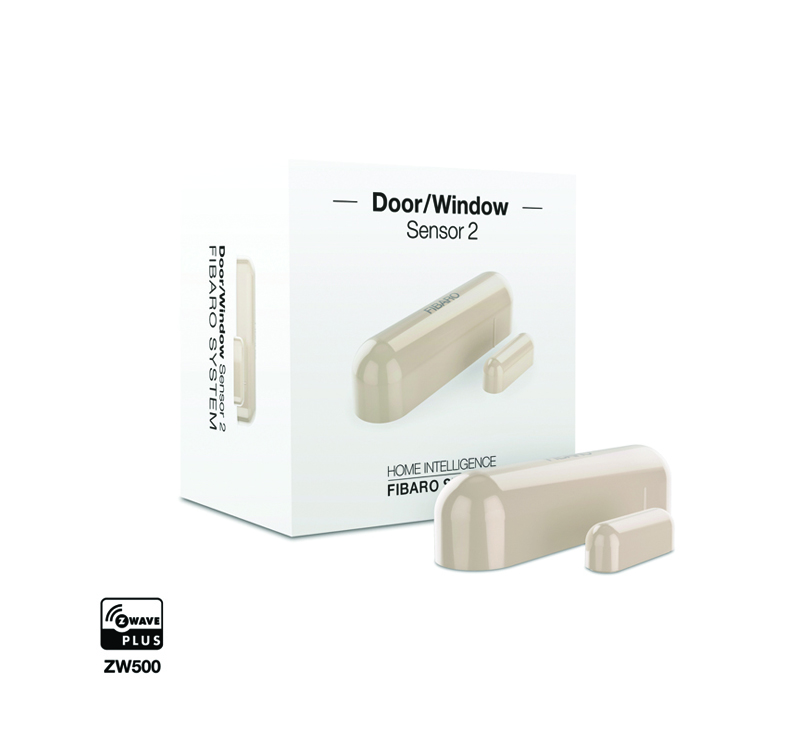

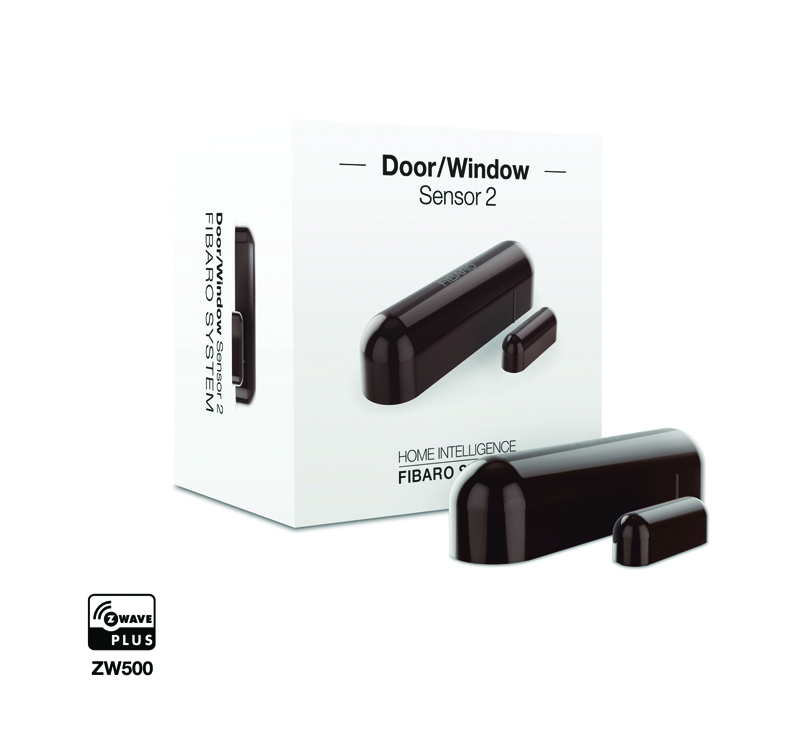

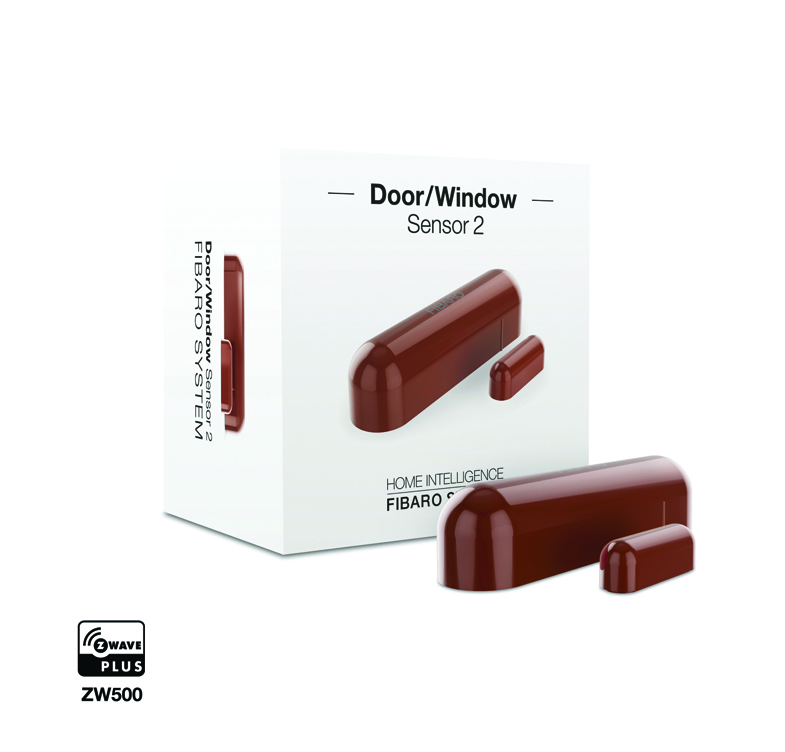

    FIBARO Door/Window Sensor

    MODEL: FGK-101 IN ZW5

    FIBARO Door/Window Sensor 2 is a wireless, battery powered, Z-Wave Plus compatible magnetic contact sensor. Opening is detected by separating the sensor’s body and the magnet. Sensor can be used to trigger scenes and wherever there is a need for information about opening or closing of doors, windows, garage doors, etc. In addition, the FIBARO Door/Window Sensor 2 is equipped with a built-in temperature sensor.

    You will know about every door or window which was left open by accident. The FIBARO Door/Window Sensor will send you information about it directly to your smart phone.

    The FIBARO Door/Window Sensor will immediately inform you about any attempts to remove the sensor or open its case. You can be sure that you and your family are protected.

    FIBARO Door/Window Sensor liverton liverton liverton liverton liverton liverton
    liverton
    liverton
    liverton
    liverton
    liverton
    liverton
    liverton
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Contact sensor
    • Detects tampering, when detached or opened
    • Built-in temperature sensor
    • An element of the security system
    • Wireless communication via Z-Wave
    • 2 years battery life
    • Advanced scene available
    • Smart notifications
    • Android and iOS mobile devices
    • Wide range of operations
    • Supports protected mode (Z-Wave network Security Mode) with AES-128 encryption
    • Easily mounted on doors, windows, garage gates and roller blinds
    • Visual LED indicator signalling status of the device


    • Powered by a single ER14250 battery
    • Inputs – single, IN
    • Number of DS temperature sensors supported – 1
    • Ambient temperature – 0 – 40°C
    • Operating range – up to 30 m indoors; up to 50 m outdoors
    • Dimensions (L x W x H): 76 x 17 x 19 mm.
    • Welcome home: You can use the FIBARO Door/Window Sensor as a scene activator. When placed by the main door, the sensor may launch a sequence which will greet the entering inhabitants.
    • Alarm: In case of any tampering by an intruder the FIBARO door/window sensor will trigger the alarm and notify you.
    • Automatic control of the light: Turn ON your lights in a particular room upon opening of the door. After a set time it may turn off the light automatically to make sure you are not increasing your bill unnecessarily.
    • Safeguard your valuable stuffs: FIBARO Door/Window Sensor informs you of any opening of your lockers which contains the valuable assets of yours.
    • The FIBARO Door/Window Sensor is also perfect as the guardian of the home first aid kit, the tools, or anything holding dangerous objects. If they are opened FIBARO will notify you.
    FIBARO Flood Sensor

    MODEL: FGFS-101 IN ZW5

    FIBARO Flood Sensor is a universal, Z-Wave Plus compatible, flood and temperature sensor. Device can be battery or VDC powered (12 or 24 VDC). Flood alarm is sent to the Z-Wave network devices or additionally to any alarm system controller, through opening a NC contact. The device has built in temperature sensor, monitoring temperature of e.g. floor. FIBARO Flood Sensor is designed to be placed on the floor or on a wall with a flood sensors probe extended by connected wire. The device has built in LED and sound alarm. In addition, the sensor is equipped with a tilt sensor reporting tilt or movement to the main controller e.g. when the Sensor has been taken by someone from it’s original location. LED diode signals flood, operating mode or the Z-Wave network communication range. FIBARO Flood Sensor is sink resistant, drifts on the water surface and keeps on sending alarm signal in case of substantial inundation.

    FIBARO Flood Sensor<
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Unique, floating design
    • Detects flooding or fire
    • Battery or VDC powered
    • Communicates with a Z-Wave network or a wired alarm system
    • Features wireless software update.


    • Power Supply: 12 - 24 VDC
    • Battery Type: CR123A (battery included)
    • Power Consumption (at VDC operation): 0.4W
    • Output terminals maximum current carrying capacity (ALARM NC, TAMP NC): 25mA
    • Maximum voltage at output terminals : 24V DC / 20V AC
    • EU standards compliance: EMC 2004/108/EC, R&TTE 199/5/WE, RoHS 2011/65/EU LVD 2006/95/EC, EMC 2004/108/EC, R&TTE 1999/5/EC
    • Radio protocol: Z-Wave Plus
    • Radio frequency: 865.2MHz
    • Range: up to 50m outdoors up to 40m indoors (depending on terrain and building structure)
    • Operational Temperature: 0oC - 40o C
    • Measured temperature range: -20o C - 100o C
    • Temperature measuring accuracy: 0.5o C (within 0oC- 40o C range)
    • Dimensions (Diameter x Height): 72 mm x 28 mm
    • Flooding threat detected by the FIBARO Flood Sensor may result in the FIBARO System automatically responding by closing the water supply to prevent damage. By installing a solenoid valve by your water main with a FIBARO Relay Switch, the system will respond automatically and shut the water supply off. The FIBARO Flood Sensor coupled with a solenoid valve and a Relay Switch module, means a safe home, which gives you peace of mind.
    • Highlight your bathtub with an RGB strip depending on the water temperature, which will give you a clear notification about the rise of temperature of the tub water. Built in temperature sensor will help to achieve.
    FIBARO Universal Binary Sensor

    MODEL: FGBS-001 IN

    The Universal Binary Sensor is a wireless module that makes it possible to improve the functionality of any sensor with a binary output by allowing it to communicate with the wireless Z-Wave network and the FIBARO building intelligence system. Moreover, the module allows for wireless communication between the system and the DS18B20 temperature sensors. The device can service up to two binary sensors and up to four DS18B20 temperature sensors. The Sensor was designed for installation in the housing of a sensor or another device, the functionality of which we wish to improve. The Universal Binary Sensor may be used whenever wireless collection of data from sensors is required. Once additional safety housing has been installed, the Sensor can also be used in areas with high humidity and high temperature. The Sensor’s main function is the integration of the wireless FIBARO system with the existing wire-based and wireless alarm and measurement systems. As an element of the safety system the device is transparent for parametric alarm lines.

    FIBARO Universal Binary Sensor
    Download manual

    PRODUCT HIGHLIGHTS:

    • Controlled with FIBARO system devices or any Z-Wave controller
    • Microprocessor-based control
    • Compatible with regular and parametric alarm lines (can be connected to 2 alarm detectors)
    • Compatible with binary sensors (can be connected to 2 binary outputs)
    • Compatible with DS18B20 temperature sensors (can be connected to four DS18B20 temperature


    • Supply voltage: 9-30V DC ±10%
    • Input: 2 potential-free inputs, 1 digital input 1-wire
    • Output: 2 potential-free outputs
    • Maximum current carrying capacity of outputs: 150mA
    • Maximum voltage at output contacts: 36V DC / 24V AC ±5%
    • Operating temperature: 0 - 40 °C
    • Number of servicing temperature sensors: 4
    • Measurement range: -55 °C - +126 °C
    • Radio protocol: Z-Wave
    • Radio frequency: 868.4 MHz EU; 908.4 MHz US; 921.4 MHz ANZ; 869 MHz RU,
    • Range: up to 30 m indoors (depending on the construction materials) up to 50 m outdoors
    • Dimensions (L x W x H): 14.5 x 27.3 x 12 mm
    • Connecting with other standalone weather sensors like humidity, temperature sensors the FIBARO universal binary sensor is able to inform Home center to trigger climate control devices.
    FIBARO Button

    MODEL: FGPB-101-1 IN ZW5

    FIBARO Button is a compact, battery-powered, Z-Wave Plus compatible device. It allows you to control devices through the Z-Wave network and run various scenes defined in FIBARO System.

    Different actions may be triggered with one to five clicks or by holding the button down. In panic mode, each press of the button results in triggering of the emergency scene. With its small design and wireless communication, the FIBARO Button can be conveniently mounted on any surface and in any position or location at home, e.g. beside the bed or under the desk.

    FIBARO Button liverton liverton liverton liverton liverton liverton
    liverton
    liverton
    liverton
    liverton
    liverton
    liverton
    liverton
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Compatible with any Z-Wave or Z-Wave+ Controller
    • Supports protected mode (Z-Wave network security mode) with AES-128 encryption
    • Completely wireless with battery power and Z-Wave communication
    • May be installed anywhere in your home
    • Extremely easy installation - simply add and put on desired surface
    • Many colour variations: white, black, red, yellow, green, blue, brown and orange


    • Battery type: ER14250 ½AA 3.6V
    • Battery life: est. 2 years (with default settings and max. 10 pushes per day)
    • Operating temperature: 0 - 40°C
    • EU standards compliance: EMC 2014/30/EU, RED 2014/53/EU, RoHS 2011/65/EU LVD 2014/35/EU
    • Radio protocol: Z-Wave (500 series chip)
    • Radio frequency: 868.4 or 869.8 MHz EU; 908.4 or 916.0 MHz US; 921.4 or 919.8 MHz ANZ; 869.0 MHz RU
    • Range: up to 50m outdoors, up to 40m indoors (Depending on terrain and building structure)
    • Dimensions (diameter x height): 46 x 34 mm
    • Click sequences and even more possibilities: The Button recognizes up to 6 different actions. One click can turn off the light, two clicks can activate the AC unit, and holding the button down can trigger a customized scene.
    • RUNNING ADVANCED SCENES IS EASY: “Scenes” are synchronized actions involving several devices. With The Button, you can run scenes with just one press, e.g. movie night”.
    • NEVER BE LATE AGAIN: Activate your "I'm Leaving" scene, which closes the blinds, turns off electrical devices, and sets the alarm with one simple press.
    • GOOD NIGHT: Press The Button and the system can turn off the lights, lock the doors, and set the alarm, all in one simple action... In the morning, a simple press can make your house rise and shine again.
    FIBARO Swipe

    MODEL: FGGC-001 IN ZW5

    FIBARO Swipe is a revolutionary, battery-powered gesture control pad that allows you to control devices through the Z-Wave network. Swipe your hand up, down, left or right in front of the pad, make circular gestures and use sequences of gestures to get full and intuitive control of your smart home. Installed device perfectly matches your interior design, as it resembles a picture frame. You can even personalize it with your favourite picture. Gesture controlled menu allows to add, remove or reset the device without dismantling it. The device is equipped with a buzzer that confirms performed gestures and other actions.

    FIBARO Swipe
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Radio protocol Z-Wave Plus
    • Compatible with any Z-Wave or Z-Wave+ Controller
    • Supports protected mode (Z-Wave network security mode) with AES-128 encryption
    • Allows for contactless gesture detection
    • Battery or VDC powered. When connected to an external VDC power source the battery serves as an emergency power source
    • Gestures and actions are confirmed by the buzzer and can be indicated additionally by the built-in LED diode
    • Gesture controlled menu allows to operate the device without dismantling it


    • Power supply: Batteries and/or 5V DC power supply (batteries included)
    • DC supply connector: Micro-USB
    • Battery type: 4 x 1.5V AA
    • Dimensions: 178 x 130 x 29 mm
    • Even Monday morning can be made pleasant. You can prepare fresh coffee and a hot bath using FIBARO SWIPE, straight from your bed. Reach out your hand and swipe to the left to prepare a favourite coffee. Move your hand to the right and the bath tub will be filled with hot water. This is the beginning of your beautiful day. Don’t you think?
    • Wave goodbye: Going out? With a simple gesture SWIPE can activate your goodbye scene. Which lowers your shades, turns off the lighting, and activate the alarm.
    FIBARO Key Fob

    MODEL: FGKF-601 IN ZW5

    FIBARO KeyFob is a Z-Wave Plus compatible, battery-powered, compact remote control. Six buttons allow you to control other devices through the Z-Wave network and run various scenes defined in FIBARO System. Configure actions for one, two, three clicks and holding the button to suit all your needs. Built-in locking system will ensure that unauthorized person will not take control of your home.

    FIBARO Key Fob
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Compatible with any Z-Wave or Z-Wave Plus Controller
    • Supports protected mode (Z-Wave network security mode) with AES-128 encryption
    • Completely wireless and battery powered
    • Pocket size
    • Equipped with 6 easily recognizable buttons
    • 24 different actions: single/double/triple click and hold for each button
    • Easy to operate menu
    • Actions confirmed by the built-in LED diode


    • Battery type: CR2450 3.0V battery (included)
    • Battery life: est. 2 years (with default settings and max. 5 pushes per day)
    • Operating temperature: 0 - 40°C
    • EU directives compliance: EMC 2014/30/EU, R&TTE 1999/5/EC, RoHS 2011/65/EU, LVD 2014/35/EU
    • Radio protocol: Z-Wave (500 series chip)
    • Radio frequency: 868.4 or 869.8 MHz EU; 908.4 or 916.0 MHz US; 921.4 or 919.8 MHz ANZ; 869.0 MHz RU
    • Range: up to 50m outdoors, up to 40m indoors (Depending on terrain and building structure)
    • Dimensions (L x W x H): 70 x 38 x 15 mm
    • COMFORT AND SAFETY: Upon arriving home, KeyFob can effortlessly open the garage, light up the driveway for your safety and comfort, and disarm the alarm in your home. Each of these actions can be triggered independently or with a single click that can launch the whole sequence of actions as one particular scene.
    • OPENS THE DOOR BEFORE YOUR EYES: Open electronic locks, when you come home or when your friends are at the door. Open up a new dimension of convenience, while maintaining the highest level of security.
    FIBARO Home Centre Lite

    MODEL: FGHCL IN

    FIBARO Home Center Lite (HCL) is a new, sleek and smaller version of the FIBARO controller that inherits many of the features of the Home Center 2 allowing you to automate the things that matter to you everyday. HCL is equipped with a new recovery system and has the ability to store backups in the cloud for added peace of mind. Its modular design allows for the addition of features such as a battery and GSM module*. The Home Center Lite will allow for even greater integration of home multimedia with FIBARO System.

    FIBARO Home Centre Lite
    Download manual

    PRODUCT HIGHLIGHTS:

    • Extremely efficient, optimized hardware architecture
    • Ultra low energy consumption
    • Remote access via web page or mobile phone
    • Simple, user friendly interface
    • Fast and simple configuration
    • Geo localization – tracking your family members
    • Manageable users’ rights
    • Various devices’ associations
    • Conditioning scenes depending on weather or other, user-defined variables
    • Advanced recovery system
    • System backup is always saved on cloud service
    • History of events


    • ARM Cortex A8 720 MHz Processor
      Optimized memory + fast processor = quick communication between FIBARO System devices
    • Z-Wave
      Hardware architecture used in Home Center Lite makes Z-Wave based home automation system work much easier than ever
    • Radio Frequency:
      868.4 MHz EU; 908.4 MHz US; 921.4 MHz ANZ; 869 MHz RU; 915 - 917 MHz IL
    • 128MB RAM, 128MB SLC Hard Drive
      Significantly improved user safety thanks to Fibar Group proprietary approach to data protection. Each Home Center Lite has its’ own recovery system, holding system backup in cloud, unique to each gateway. This closes each system completely from unauthorized access.
    • Magic garden: A well-kept lawn in front of your house no longer requires your utmost attention. The intelligent FIBARO System will water your garden exactly when required, delivering the right amount of water, depending on weather. FIBARO won’t let your plants die on a hot day, and prevent from watering them excessively when it rains.
    • Where are you?: Your home always knows where you and your family members are thanks to geo localization. When you leave home, the system turns off unused devices, arms the alarm system and simulates your presence to discourage thieves from breaking in. While calculating your return route, the system will adjust temperature and run pre-programmed scenes to prepare for you arrival. Energy saving, safety and comfort – FIBARO.
    • From Anywhere in the world: Forgot to turn off an iron when rushing to the office? No worries. Grab your phone, start FIBARO app and check. Using automatic remote access to your intelligent home from anywhere in the World, you can check what’s happening, manage the devices, monitor safety, cooling parameters and much more.
    • Full history at your fingertips: With FIBARO System you can control how much time your children spent in front of the TV, on their computer or with a video game console. It’s a perfect solution to plan how many hours your kids may spend on these devices. Create schedules or remotely control operation of the devices.
    • Discovers various threats: We care most about you and your family’s safety, that’s why we pay so much attention to discovering threats and reporting them. The FIBARO System will immediately inform you of a threatening fire, flood, break-in or leaking gas and proceed to take the appropriate steps to protect you and your family, such as cutting off incoming supplies, turning on all ventilation systems and displaying evacuation notices. For a break-in attempts, FIBARO can trigger audible and visual alarms, switch on all internal lights and feed live preview from security cameras directly to your mobile devices. FIBARO – your personal safeguard
    FIBARO Home Centre 2

    MODEL: FGHC2 IN

    Home Center 2 is the fast, efficient and high power hub, that is used to control the FIBARO system. The Home Center 2 communicates with up to 230 actors and sensors using a wireless communication protocol named Z-Wave. The work of the FIBARO control unit is protected by an advanced data backup and recovery system - automatically stored on a USB stick hidden in the enclosure. Using the user-friendly configuration interface of the Home Center 2, you can create advanced, pre-defined scenes. The Home Center 2 can manage user rights and supports VoIP functionality and video-intercoms. The Home Center 2 gives users the ability to write scripts in lua, which expands the functionality of the system.

    FIBARO Home Centre 2
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Extremely efficient hardware architecture = fastest device of the type in the World
    • Ultra low energy consumption
    • Remote access via web page or mobile phone
    • Simple, user-friendly interface
    • Fast and simple configuration
    • Geo localization – tracking your family members
    • SMS notification
    • Manageable users’ rights
    • Various devices’ associations
    • Conditioning scenes depending on weather or other, user-defined variables
    • Advanced recovery system
    • System backup is always saved on attached pen drive, hidden in the casing
    • History of events


    • Intel Atom 1.6Ghz Processor
      Thanks to its efficiency, Home Center 2 is much, much faster than other Z-Wave gateways, currently available in the World.
    • 1GB RAM, 2GB SLC Hard Drive
      Large memory + fast processor = quick communication between FIBARO System devices. Hardware architecture used in Home Center 2 makes Z-Wave based home automation system work much faster than ever.
    • 4GB MLC Recovery Disc
      Significantly improved user safety thanks to Fibar Group own approach to data protection. Each Home Center 2 has its’ own Recovery disc, holding system backup, unique to each gateway. This closes each system completely from unauthorized access. Other advantage of this solution is quick and simple system healing after any failure
    • Where are you?: Your home always knows where you and your family members are thanks to geo localization. When you leave home, the system turns off unused devices, arms the alarm system and simulates your presence to discourage thieves from breaking in. While calculating your return route, the system will adjust temperature and run pre-programmed scenes to prepare for you arrival. Energy saving, safety and comfort – FIBARO.
    • From Anywhere in the world: Forgot to turn off an iron when rushing to the office? No worries. Grab your phone, start FIBARO app and check. Using automatic remote access to your intelligent home from anywhere in the World, you can check what’s happening, manage the devices, monitor safety, cooling parameters and much more.
    • Full history at your fingertips: With FIBARO System you can control how much time your children spent in front of the TV, on their computer or with a video game console. It’s a perfect solution to plan how many hours your kids may spend on these devices. Create schedules or remotely control operation of the devices.
    • Discovers various threats: We care most about you and your family’s safety, that’s why we pay so much attention to discovering threats and reporting them. The FIBARO System will immediately inform you of a threatening fire, flood, break-in or leaking gas and proceed to take the appropriate steps to protect you and your family, such as cutting off incoming supplies, turning on all ventilation systems and displaying evacuation notices. For a break-in attempts, FIBARO can trigger audible and visual alarms, switch on all internal lights and feed live preview from security cameras directly to your mobile devices. FIBARO – your personal safeguard
    FIBARO Bypass

    MODEL: FGB-002

    Bypass 2 FIBARO is a device complementary to FIBARO Dimmer FGD212. Its installation makes possible to dim light sources with minimum power consumption, such as e.g. single 0,5 Watt LED. Please note it is possible to dim only light sources clearly marked as dimmable.

    FIBARO Bypass
    Download manual
    Watch Video

    PRODUCT HIGHLIGHTS:

    • Power source: 230V +/-10% 50Hz
    • Overheating protection: safety off at 105o C
    • To be mounted in standard, wall switch boxes Ø ≥ 50 mm
    • Outside dimensions (L x W x H) - 22mm x 30mm x 13mm


    • Lead Length: 90mm.
    • Power supply: 100-240 V~ 50/60 Hz.
    • Operating temperature: 0-35°C.
    • Power consumption: < 1,4 W.
    • To control lamps with power of less than 50W the FIBARO Dimmer 2 module makes use of the Dimmer Bypass. For low-power LED lamps it is just perfect to use.
    • Only lamps that are ‘dimmable’ will work with the FIBARO Dimmer 2 and Dimmer Bypass. Please make sure that your lamp can be dimmed before buying this product.
